CNC Turning: Dual Spindle, Y-Axis
DS-30Y
Product Overview

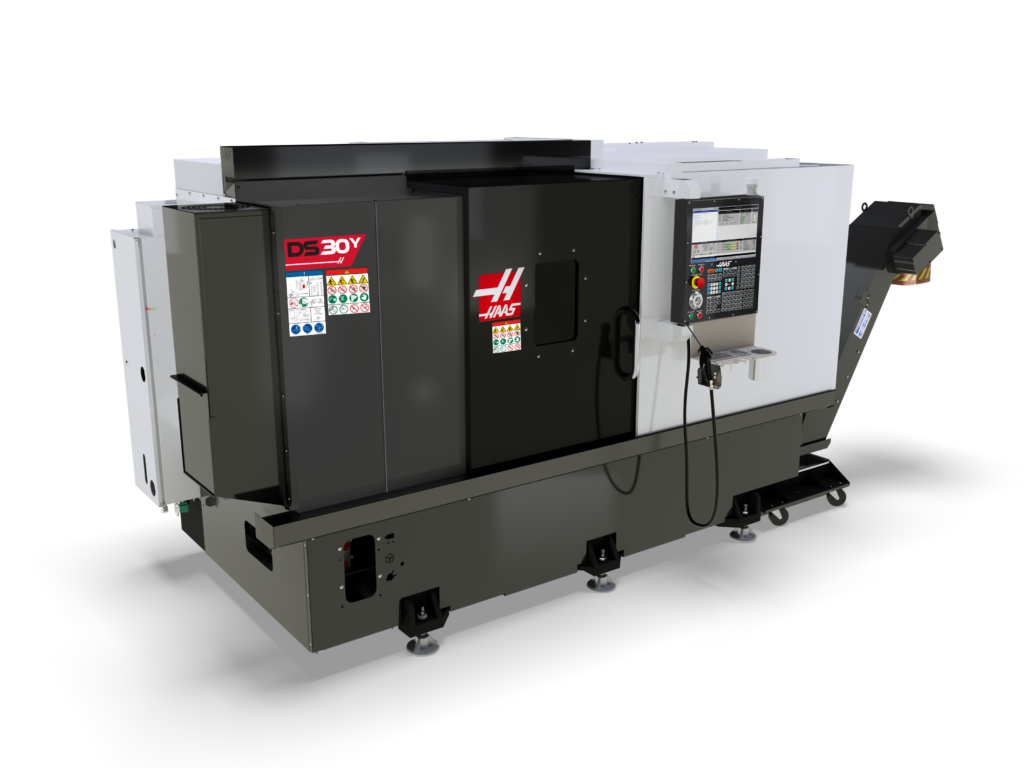

Dual-Spindle CNC Lathe with Y Axis; 18" x 23" (457 x 584 mm) max capacity, 31.75" (806 mm) swing, ±2.00" (±50.8 mm) Y-axis travel. Main Spindle: 30 hp (22.4 kW) vector drive, 4800 rpm, A2-6 spindle, 8.3" (210 mm) chuck. Secondary Spindle: 20 hp (14.9 kW) vector drive, 4800 rpm, A2-5 spindle, 8.3" (210 mm) chuck, 12-station BMT-65 turret, high-torque live tooling w/C axis, 15" color LCD monitor, memory lock keyswitch, spindle orientation, USB port and rigid tapping. Includes standard toolholder kit.
Resources
Specifications
| DS-30Y | ||
|---|---|---|
| SWING DIAMETER | S.A.E. | METRIC |
| Max Part Swing | 31.75 " | 806 mm |
| Over Second Spindle | 21.75 " | 552 mm |
| CAPACITIES | S.A.E. | METRIC |
| Chuck Size | 8.3 " | 210 mm |
| Max Cutting Diameter (varies with turret) | 18.0 " | 457 mm |
| Max Cutting Length (without workholding) | 23 " | 584 mm |
| Bar Capacity | 2.0 " | 51 mm |
| TRAVELS & FEEDRATES | S.A.E. | METRIC |
| X Axis | 12.5 " | 318 mm |
| Y Axis | ±2.00 " | ±50.8 mm |
| Z Axis | 23 " | 584 mm |
| Rapids on X | 472 in/min | 12 m/min |
| Rapids on Y | 472 in/min | 12 m/min |
| Rapids on Z | 945 in/min | 24.0 m/min |
| Max Thrust X | 4100 lb | 18238 N |
| Max Thrust Y | 2300 lb | 10231 N |
| Max Thrust Z | 5100 lb | 22686 N |
| SPINDLE | S.A.E. | METRIC |
| Max Rating | 30 hp | 22.4 kW |
| Max Speed | 4800 rpm | 4800 rpm |
| Max Torque | 300 ft-lb @ 500 rpm | 407 Nm @ 500 rpm |
| Spindle Nose | A2-6 | A2-6 |
| Spindle Bore ø | 3.50 " | 88.9 mm |
| MAIN SPINDLE C AXIS | S.A.E. | METRIC |
| Max Rating | 5 hp | 3.7 kW |
| Positioning (±) | 0.01 ° | 0.01 ° |
| Brake Clamp Force | 1000 lb | 4448 N |
| Brake Diameter | 14.4 " | 366 mm |
| Control Type | Interpolated Motion & Positioning | Interpolated Motion & Positioning |
| SECONDARY SPINDLE | S.A.E. | METRIC |
| Max Rating | 20 hp | 14.9 kW |
| Max Speed | 4800 rpm | 4800 rpm |
| Max Torque | 135 ft-lb @ 700 rpm | 183 Nm @ 700 rpm |
| Spindle Nose | A2-5 | A2-5 |
| Chuck Size | 8.3 " | 210 mm |
| Spindle Bore ø | 2.44 " | 61.9 mm |
| SECONDARY SPINDLE POSITIONING | S.A.E. | METRIC |
| Brake Clamp Force | 500 lb | 2224 N |
| Brake Diameter | 7 " | 178 mm |
| Control Type | Positioning Only | Positioning Only |
| TURRET | S.A.E. | METRIC |
| Number of Tools | 12 Stations | 12 Stations |
| Turret Type | BMT-65 | BMT-65 |
| Boring Bar Rear Clearance (from back of turret ) | 4.0 " | 102 mm |
| LIVE TOOLING | S.A.E. | METRIC |
| Max Speed | 6000 rpm | 6000 rpm |
| Drive Ratio | 1:1 | 1:1 |
| Tooling | BMT-65 | BMT-65 |
| GENERAL | S.A.E. | METRIC |
| Air Required | 4 scfm, 100 psi | 113 L/min, 6.9 bar |
| Coolant Capacity | 55 gal | 208 L |
