UMC-500

40

TAPER

5

AXIS

8.1k

RPM

30+1

TOOL CAPACITY

5-Axis Machining Centres For Everyone


What Do You Want to Create Today?

5-axis machining is an effective means to reduce setups and increase accuracy for multi-sided parts. The shorter travels and compact footprint of the UMC-500 make it perfect for 5-axis machining of smaller parts.

  • 5-axis simultaneous machining
  • Powerful inline direct-drive spindle
  • High-speed trunnion table
  • Large capacity side-mount tool changer
  • Includes Wireless Intuitive Probing System
  • Made in the USA

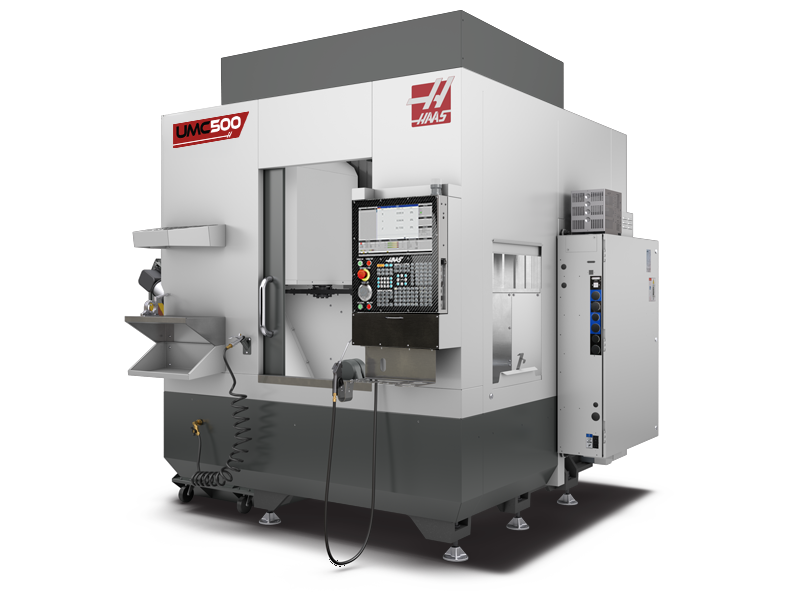

5-Axis Universal Machining Centre; 610 x 406 x 406 mm, with 400 mm Integrated 2-Axis Trunnion Rotary Table, 40 taper, 30 hp Vector Drive, 8,100 rpm (15k opt.) Direct-Drive, 30+1 Side Mount Tool Changer (50+1 opt.) (Servo-Driven High Speed), 22.9 m/min Rapids, Spindle Orientation, Macros, Coordinate Rotation & Scaling, Wireless Intuitive Probing System (WIPS), High-Speed Machining, Programmable Coolant Nozzle, Chip Conveyor, Dynamic Work Offsets (DWO), Tool Centre Point Control (TCPC), Second Home Button, Colour Remote Jog Handle, Power-Failure Detection Module, 1 GB Memory, 15″ Colour LCD Monitor, USB Port, Memory Lock Keyswitch, Rigid Tapping and 208 litre Flood Coolant System.

UMC-500 • 5-Axis Universal Machining Centre


UMC-500 • 5-Axis Universal Machining Centre

The UMC-500 has the capability of the UMC-750 together with the design improvements of the UMC-1000. Furthermore, it sits on a footprint just slightly larger than a VF-2.

Link to video

5-Axis Made Easy – Parts 1, 2 and 3


1: Senior applications engineer John Nelson explains why 5-axis machining is much simpler than it has ever been before, furthermore why any shop can be a 3+2 or 5-axis shop.

2: John explains how to make the correct choice when choosing your machine and rotary combination.

3: He talks about setting up your rotary table or trunnion, as well as explaining how the Dynamic Work Offsets and Tool Centre Point Control makes multi-axis work more straightforward than ever.

Link to video



16-Station Pallet Pool for UMC-500 5-Axis Universal Machining Centre

High-volume production, unattended operation

The 16-station pallet pool for the UMC-500 and UMC-500SS are perfect for high-volume production runs. In addition, the pallets can be scheduled individually according to priority and sequencing requirements. In other words allowing high-priority parts to be machined first or staged more often. Another key point is that completed pallets automatically return to the holding location or can be sequenced to a protected operator station. In other words allowing immediate unloading and re-loading.

NOTE: The Pallet Pool must be anchored for proper operation.

  • Fully integrated solution for lights-out production
  • 16+1 pallets
  • Includes 50+1 side-mount tool changer
  • Includes CNC control cabinet cooler
  • 200 lb max payload per pallet
  • 8″ dia. x 16.5″ tall work envelope
  • Easy-to-use scheduling interface
  • Dedicated load/unload station
  • Must be ordered with the machine



UMC Auto Parts Loader for 5-Axis Universal Machining Centre

Automate Your Part Production on Small UMCs

The Haas Automatic Parts Loader is a simple and affordable way to automate part production. What’s more it’s designed and built exclusively for the Haas UMC-500 series. By the same token, for simplicity, it connects directly to the Haas control.

  • All-inclusive design, with plug-and-play capabilities
  • Interfaces directly with the Haas control
  • Accommodates parts up to 6″ length x 6″ width x 10 lb
  • Includes light curtain for safe operation
  • Made in the USA



UMC-500SS and Pallet Pool In Action


The compact footprint of the UMC-500 makes it ideal for smaller 5-axis workshops. Furthermore the UMC-500SS has a faster spindle coupled with a high-speed tool changer. Additionally, a high-speed trunnion reduces cycle times and boosts efficiency. The addition of our 16-Station Pallet Pool takes your production to the next level. At last running “lights out” has become a reality.

Link to video

SEE OUR VERTICALS IN ACTION

Haas VF-2SS & HRC210 Demo

This demo was designed to show off the higher spindle speed and rapids of the VF-2SS and the quickness of the HRC210.

You can also see in-process probing for part location and feature inspection using the Haas WIPS system.

VF-4 and TR200Y - Cutting Demo

Watch as our VF-4 mill joins forces with our TR200Y 5-Axis trunnion rotary table to put features on 5 sides of this block.

Check out our VF-4 mill here: haas.co.uk/machines/vf-4/

And check out the TR200Y rotary table here: haas.co.uk/rotaries/tr200y/

How We Build VMCs Today

Back in the late 1980s we started building our first VMC, the VF-1.

Today, our process is finely tuned and extremely efficient for a machine that is still hand built to a great extent. Take a look at how we build the same VF that may be sitting on your shop floor not too long from now.

Display Pictures and Videos on Your Haas Control Using M130

Mark shows off the powerful new Haas M130 Media Display feature. By commanding an M130, you can display setup sheets, tool lists, work instructions, and even videos – all within your program.
