TM-1

TAPER

AXIS

RPM

TOOL CAPACITY

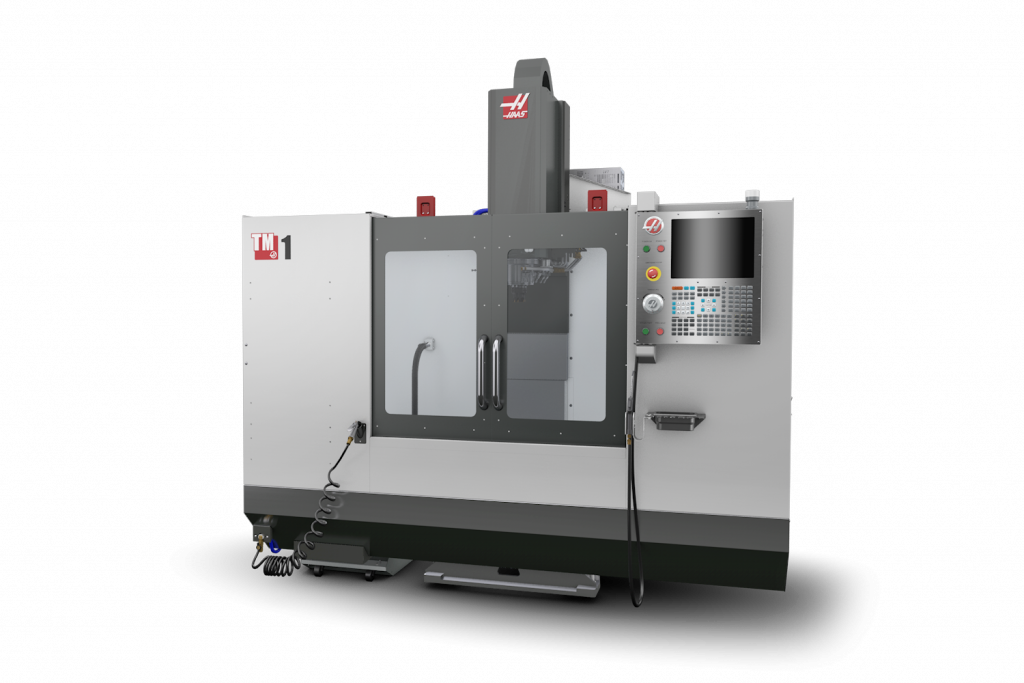

Toolroom Mill; 762 x 305 x 406 mm, 40 taper, 7.5 hp vector drive, 4000 rpm, full enclosure, Visual Programming System, power-failure detection module, 1 GB program memory, memory lock keyswitch, 15″ colour LCD monitor and USB port, Ethernet interface and 76 litre flood coolant system.

TM-1 - Compare to

TM-1
TRAVELS	S.A.E.	METRIC
X Axis	30 "	762 mm
Y Axis	12 "	305 mm
Z Axis	16 "	406 mm
Spindle Nose to Table (~ max)	20 "	508 mm
Spindle Nose to Table (~ min)	4 "	102 mm
TABLE	S.A.E.	METRIC
Length	47.75 "	1213 mm
Width	10.5 "	267 mm
T-Slot Width	5/8 "	16 mm
T-Slot Center Distance	4.00 "	101.6 mm
Number of Std T-Slots	3	3
Max Weight on Table (evenly distributed)	1000 lb	454 kg
SPINDLE	S.A.E.	METRIC
Max Rating	7.5 hp	5.6 kW
Max Speed	4000 rpm	4000 rpm
Max Torque	33 ft-lb @ 1200 rpm	45 Nm @ 1200 rpm
Drive System	Direct Speed Belt Drive	Direct Speed Belt Drive
Taper	BT or CT 40	BT or CT 40
Bearing Lubrication	Grease packed	Grease packed
Cooling	Air Cooled	Air Cooled
FEEDRATES	S.A.E.	METRIC
Rapids on X	200 in/min	5.1 m/min
Rapids on Y	200 in/min	5.1 m/min
Rapids on Z	200 in/min	5.1 m/min
Max Cutting	200 in/min	5.1 m/min
AXIS MOTORS	S.A.E.	METRIC
Max Thrust X	2000 lb	8896 N
Max Thrust Y	2000 lb	8896 N
Max Thrust Z	2000 lb	8896 N
GENERALS	S.A.E.	METRIC
Air Required	4 scfm, 100 psi	113 L/min, 6.9 bar
