Take a Bite Out of Cycle Times – DM-2 high-speed machine

The DM-2 high-speed machine provides the perfect combination of speed and power to reduce cycle times.

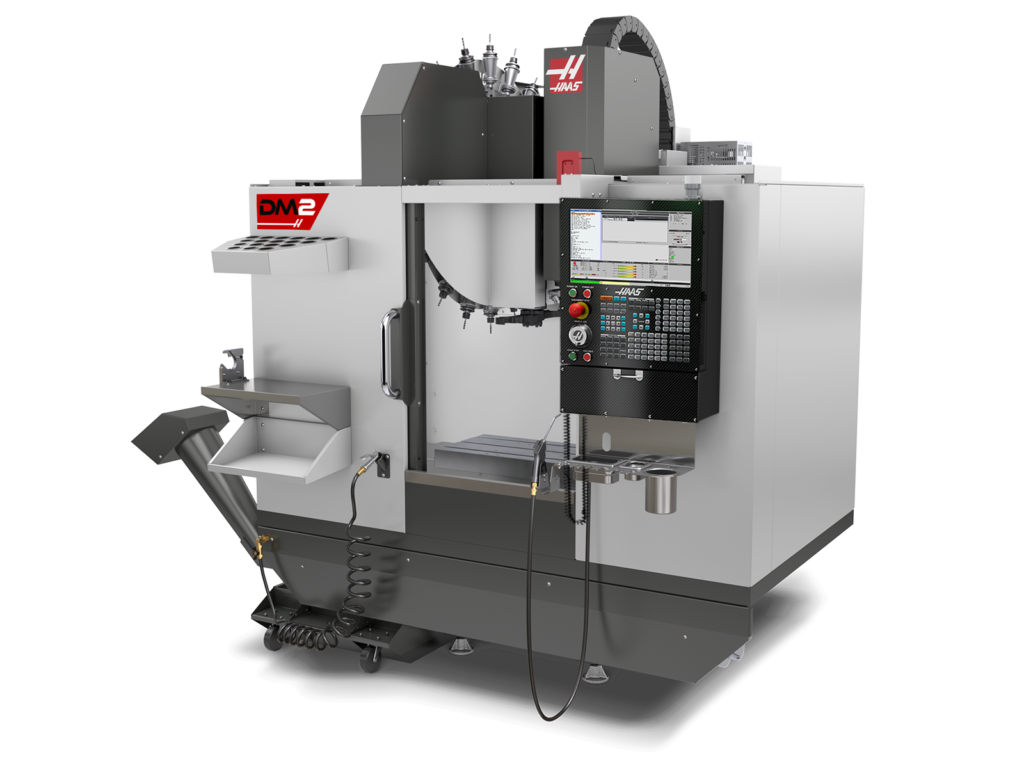

The DM-2 is a compact, high-speed machining centre built with proven Haas components and sub-assemblies. It is identical in construction and specifications to the DM-1, with the addition of 8″ of X-axis travel and table length. The machine’s shop-proven 40-taper inline spindle, 18+1 tool changer, high acceleration rates, fast rapids, and impressive short tool-change times make the DM-2 an attractive high-productivity machining centre.

Equally important, the DM-2 allows shops to use their existing 40-taper tooling and enjoy the benefits of a larger spindle. Moreover, it has a lean-style, compact footprint that makes very efficient use of valuable shop floor space.

More X-axis travel and longer table than the DM-1
Powerful 40-taper inline direct-drive spindle
High-productivity machining centre with a compact footprint
Made in the USA

DM-2 high-speed machine; 711 x 406 x 394 mm, 40 taper, 15 hp vector drive, 10,000 rpm (12K & 15K opt.), 61 m/min rapids, high-speed 18+1 side-mount tool changer, power-failure detection module, 1 GB program memory, 15″ colour LCD monitor, USB port, Ethernet interface, memory lock keyswitch, rigid tapping and 170 L flood-coolant system. Anchor kit highly recommended for installation.

Introducing the DM-1

See how the DM-1 high-speed machine high acceleration rates and fast tool-change times – combined with the ability to use a shop’s existing 40-taper tools – make it a valuable addition for job shops and large manufacturers alike. Moreover, it has a lean-style, compact footprint that makes very efficient use of valuable shop floor space.

Link to video

Link to DM/DT Series

Wireless Intuitive Probing System

Drastically reduce setup times on your high-speed machine

Automate your high-speed machine’s setup process with the Haas Wireless Intuitive Probing System (WIPS). WIPS is a complete probing package that includes the spindle probe, tool setting probe, and optical machine interface. Furthermore, powerful software that guides the operator through the job setup process with intuitive, easy-to-use templates. WIPS allows you to quickly and easily define work offset coordinates. Additionally, set tool length offsets, and perform in-process inspection.

DM-2 - Compare to

DM-2
TRAVELS	S.A.E.	METRIC
X Axis	28 "	711 mm
Y Axis	16 "	406 mm
Z Axis	15.5 "	394 mm
TABLE	S.A.E.	METRIC
Length	34 "	864 mm
Width	15 "	381 mm
T-Slot Width	5/8 "	16 mm
T-Slot Centre Distance	4.92 "	125.0 mm
Number of Std T-Slots	3	3
Max Weight on Table (evenly distributed)	250 lb	113 kg
SPINDLE	S.A.E.	METRIC
Max Rating	15 hp	11.2 kW
Max Speed	10,000 rpm (12K & 15K opt.)	10,000 rpm (12K & 15K opt.)
Max Torque	46 ft-lb @ 1700 rpm	62 Nm @ 1700 rpm
Drive System	Inline Direct Drive	Inline Direct Drive
Taper	BT40 or CT40	BT40 or CT40
Bearing Lubrication	Air/Oil	Air/Oil
Cooling	Air	Air
Tapping	S.A.E.	METRIC
Max Tapping Speed	5000 rpm	5000 rpm
Max Tap Size (aluminum)	1/2 x 13	M12 x 1.75 mm
FEEDRATES	S.A.E.	METRIC
Rapids on X	2400 in/min	61.0 m/min
Rapids on X	2400 in/min	61.0 m/min
Rapids on X	2400 in/min	61.0 m/min
Max Cutting	1200 in/min	30.5 m/min
AXIS MOTORS	S.A.E.	METRIC
Max Thrust X	2550 lb	11343 N
Max Thrust Y	2550 lb	11343 N
Max Thrust Z	4200 lb	18683 N
TOOL CHANGER	S.A.E.	METRIC
Type	SMTC	SMTC
Capacity	18+1	18+1
Max Tool Diameter	2.5 "	64 mm
Max Tool Diameter (adjacent empty)	2.5 "	64 mm
Max Tool Length	7.0 "	178 mm
Chip-to-Chip (avg)	1.6 sec	1.6 sec
GENERALS	S.A.E.	METRIC
Air Required	4 scfm, 100 psi	113 L/min, 6.9 bar
Coolant Capacity	45 gal	170 L

Brochure

Manual

Rotary Table Fit Chart
