CNC Turning: Y-Axis
ST-15Y
Product Overview

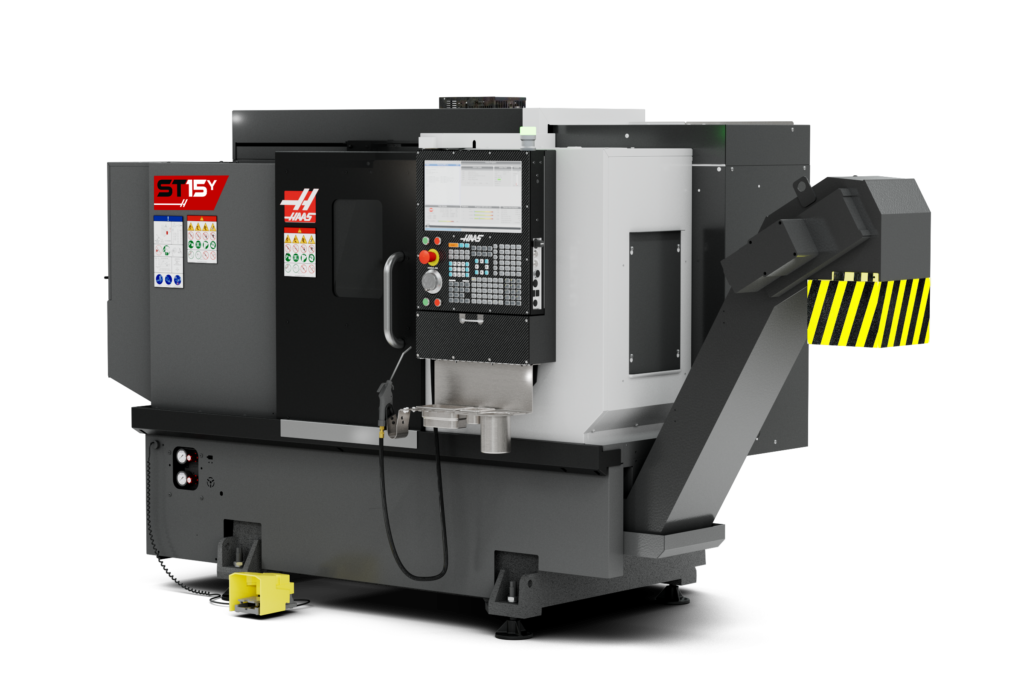

CNC Lathe w/Y Axis; 12" x 16" (305 x 406 mm) max capacity, 2.5" (63.5 mm) bar, 16" (406 mm) swing, ±2.00" (±50.8 mm) Y-axis travel, 20 hp (14.9 kW) vector drive, 4000 rpm, A2-6 spindle, 8.3" (210 mm) chuck, 12-station VDI turret, high-torque live tooling w/C axis, 15" colour LCD monitor, memory lock keyswitch, spindle orientation, USB port and rigid tapping. Standard toolholder kit included.
Resources
Specifications
| ST-15Y | ||
|---|---|---|
| SWING DIAMETER | SAE | METRIC |
| Over Wedge | 16.5" | 419 mm |
| Max Part Diameter | 16.5" | 419 mm |
| CAPACITIES | SAE | METRIC |
| Chuck Size | 8.3" | 210 mm |
| Max Cutting Diameter (varies with turret) | 12" | 305 mm |
| Max Cutting Length (without workholding) | 16" | 406 mm |
| Bar Capacity | 2.5" | 63.5 mm |
| TRAVELS & FEEDRATES | SAE | METRIC |
| X Axis | 7.88" | 200 mm |
| Y Axis | ±2 " | ±51 mm |
| Z Axis | 16" | 406 mm |
| Rapids on X | 472 in/min | 12 m/min |
| Rapids on Y | 472 in/min | 12 m/min |
| Rapids on Z | 1200 in/min | 30.5 m/min |
| Max Thrust X | 2400 lb | 2400 lb |
| Max Thrust Y | 2300 lb | 10231 N |
| Max Thrust Z | 3700 lb | 16458 N |
| SPINDLE | SAE | METRIC |
| Max Rating | 20 hp | 14.9 kW |
| Max Speed | 4000 rpm | 4000 rpm |
| Max Torque | 150 ft-lb @ 500 rpm | 203 Nm @ 500 rpm |
| Spindle Nose | A2-6 | A2-6 |
| Spindle Bore ø | 3.50" | 88.9 mm |
| MAIN SPINDLE C AXIS | SAE | METRIC |
| Max Rating | 5 hp | 3.7 kW |
| Positioning (±) | 0.02° / 72 arc-sec ° | 0.02° / 72 arc-sec ° |
| Max Speed | 60 rpm, 360°/sec | 60 rpm, 360°/sec |
| Brake Clamp Force | 1000 lb | 4448 N |
| Brake Diameter | 14.4" | 366 mm |
| Control Type | Interpolated Motion and Positioning | Interpolated Motion and Positioning |
| Brake Holding Torque | 140 ft-lb | 190 Nm |
| TAILSTOCK | SAE | METRIC |
| Manual Body Positioning | 20.0" | 508 mm |
| Hydraulic Quill Travel | 3.75 " | 95 mm |
| Max Thrust (Hyd. Quill Only) | 1130 lb | 5027 N |
| Min Thrust (Hyd. Quill Only) | 140 lb | 623 N |
| TURRET | SAE | METRIC |
| Number of Tools | 12 Station VDI | 12 Station VDI |
| LIVE TOOLING | SAE | METRIC |
| Max Speed | 6000 rpm | 6000 rpm |
| Tooling | VDI40 | VDI40 |
